Welding Cable
Welding Cable
Welding Cable
Welding Cable
Welding Cable
Welding Cable

Welding Cable

This product is suitable for seconday side-connecting welding clamp with voltage to ground not more than 200V and it pulsating direct current peak value 400V.
Certificate :
ISO 9001 ISO 14001 ISO 45001 CCC
Manufacturing Capacity :
5000km/Month
Packaging Details :
Roll, Wooden drum,Steel-Wood Drum or Metal Drum
Product Description
Product Application
Product Structure
Main Features
Specification
Related Products
Product Description
This product is suitable for seconday side-connecting welding clamp with voltage to ground not more than 200V and it pulsating direct current peak value 400V.
Get a Custom Quote
Product Application
This product is suitable for seconday side-connecting welding clamp with voltage to ground not more than 200V and it pulsating direct current peak value 400V.
Product Application
Product Application
Product Application
Product Structure

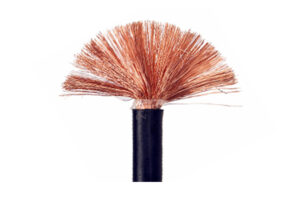

Welding Cable
01
Conductor
- Flexible annealed stranded soft copper(Class 6)
02
Insulation
- Premium grade color coded Rubber compound(EPR)
Standard
IEC 60245-6 E N 50525-2-81 HD 22.6 VDE 0282-6
Feature
Super Flexible
Specification

Table1 60245 IEC 81(YH)



Size

mm2

Conductor diameter

mm

Nominal thickness of sheath

mm

Rang of cable diameter

mm

Approx. cable weight

kg/km

16 6.0 2.0 8.8~11.0 236
25 6.8 2.0 10.1~12.7 322
35 8.2 2.0 11.4~14.2 432
50 10.2 2.2 13.2~16.5 593
70 11.9 2.4 15.3~19.2 817
95 13.8 2.6 17.1~21.4 1092



Table2 H01N2-D



Size

mm2

Max. diameter

of single wire

mm

Nominal thickness of sheath

mm

Rang of cable diameter

mm

Max. DC resistance of conductor at 20℃

Ω/km

10 0.21 2.0 7.7~9.7 1.91
16 0.21 2.0 8.8~11.0 1.21
25 0.21 2.0 10.1~12.7 0.780
35 0.21 2.0 11.4~14.2 0.554
50 0.21 2.2 13.2~16.5 0.386
70 0.21 2.4 15.3~19.2 0.272
95 0.21 2.6 17.1~21.4 0.206
120 0.51 2.8 19.2~24.0 0.161
150 0.51 3.0 21.1~26.4 0.129
185 0.51 3.2 23.1~28.9 0.106
240 0.51 3.4 25.8~32.1 0.0801



Table3 H01N2-E



Size

mm2

Max. diameter

of single wire

mm

Nominal thickness of sheath

mm

Rang of cable diameter

mm

Max. DC resistance of conductor at 20℃

Ω/km

10 0.16 1.2 6.2~7.8 1.91
16 0.16 1.2 7.3~9.1 1.21
25 0.16 1.2 8.6~10.8 0.780
35 0.16 1.2 9.8~12.3 0.554
50 0.16 1.5 11.9~14.8 0.386
70 0.16 1.5 13.6~17.0 0.272
95 0.16 1.8 15.6~19.5 0.206
120 0.21 1.8 17.2~21.6 0.161
150 0.21 1.8 18.8~23.5 0.129
185 0.21 1.8 20.4~25.5 0.106
240 0.21 2.0 23.0~28.0 0.0801
