Silicone Rubber Insulation Cable

Widely used in electric power, petrochemical, steel, smelting, power plants, coking plants, aviation, electronics...

Certificate :

ISO 9001 ISO 14001 ISO 45001

Manufacturing Capacity :

1000km/Month

Packaging Details :

Roll, Wooden drum, Steel-Wood Drum or Metal Drum.

Send Email

Chat Now

SHARE PRODUCT

Product Description

Widely used in electric power, petrochemical, steel, smelting, power plants, coking plants, aviation, electronics, ships, ports, automobile manufacturing and other high temperature industry between the electrical connection between the mobile electrical equipment, and temperature resistance and other special requirements of the occasion of control, lighting, communication lines and monitoring circuit use.

Get a Custom Quote

Product Application

Product Application

Product Application

Product Application

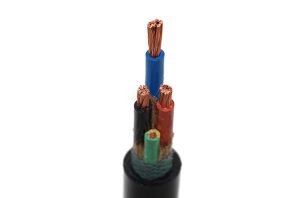

Product Structure

Conductor

- Flexible annealed stranded soft copper,Class 5

Insulation

- Premium grade color coded Silicone Rubber Insulation

Filler

- Filler rope(For multi-core)

Bind

- Tape(For multi-core)

Jacket

- Overall jacket of Silicone Rubber compound , Optional is oil, solvents, ozone, weather, sunlight, and water resistant.

Standard

IEC

Voltage

0.6/1(1.2)kV

Temperature characteristics

Working temperature: -40℃~+120℃
Max. temperature at conductor: +180℃
Short circuit temperature: 250℃ (5s)

Feature

Flame retardant, LSZH, Flexible, Weather / UV resistance, Mineral oil resistance

Specification

Table 1 GGR 0.6/1kV

Size mm2	Nominal thickness of insulation mm	Nominal thickness of sheath mm	Approx. cable diameter mm	Approx. cable weight kg/km
2×0.75	0.8	1.8	9.9	129.2
2×1	0.8	1.8	10.3	140.8
2×1.5	1.0	1.8	11.7	185.5
2×2.5	1.0	1.8	12.6	224.0
2×4	1.0	1.8	13.7	280.3
2×6	1.0	1.8	14.9	348.4
2×10	1.0	1.8	17.5	497.7
2×16	1.0	1.8	19.5	670.1
2×25	1.2	1.8	23.4	983.9
2×35	1.2	1.8	26.4	1289.0
2×50	1.4	1.9	30.7	1783.7
2×70	1.4	2.1	34.1	2327.1
2×95	1.6	2.2	39.1	3099.1
2×120	1.6	2.3	42.1	3745.9
2×150	1.8	2.5	46.4	4624.7
2×185	2.0	2.6	51.4	5679.4
2×240	2.2	2.8	57.9	7273.2
3×0.75	0.8	1.8	10.4	144.5
3×1	0.8	1.8	10.8	158.8
3×1.5	1.0	1.8	12.3	211.3
3×2.5	1.0	1.8	13.2	259.7
3×4	1.0	1.8	14.5	330.6
3×6	1.0	1.8	15.7	418.0
3×10	1.0	1.8	18.6	603.2
3×16	1.0	1.8	20.7	829.1
3×25	1.2	1.8	24.9	1226.6
3×35	1.2	1.9	28.2	1627.0
3×50	1.4	2.0	32.9	2262.7
3×70	1.4	2.1	36.6	2982.4
3×95	1.6	2.3	41.9	3982.8
3×120	1.6	2.4	45.2	4848.8
3×150	1.8	2.6	49.8	6002.1
3×185	2.0	2.7	55.2	7375.9
3×240	2.2	3.0	62.1	9462.4
4×0.75	0.8	1.8	11.2	169.0
4×1	0.8	1.8	11.6	186.8
4×1.5	1.0	1.8	13.4	251.5
4×2.5	1.0	1.8	14.4	313.0
4×4	1.0	1.8	15.7	402.5
4×6	1.0	1.8	17.1	513.8
4×10	1.0	1.8	20.4	747.9
4×16	1.0	1.8	22.8	1038.1
4×25	1.2	1.8	27.7	1561.7
4×35	1.2	2.0	31.3	2070.5
4×50	1.4	2.1	36.6	2887.4
4×70	1.4	2.3	40.7	3818.6
4×95	1.6	2.5	46.7	5108.8
4×120	1.6	2.6	50.3	6233.1
4×150	1.8	2.8	55.5	7725.2
4×185	2.0	2.9	61.5	9497.8
4×240	2.2	3.2	69.3	12196.6
5×0.75	0.8	1.8	12.1	197.9
5×1	0.8	1.8	12.5	219.4
5×1.5	1.0	1.8	14.5	298.2
5×2.5	1.0	1.8	15.6	373.5
5×4	1.0	1.8	17.2	484.0
5×6	1.0	1.8	18.7	621.7
5×10	1.0	1.8	22.3	910.5
5×16	1.0	1.8	25.0	1270.0
5×25	1.2	1.9	30.7	1931.5
5×35	1.2	2.1	34.8	2564.9
5×50	1.4	2.3	40.6	3582.5
5×70	1.4	2.4	45.2	4744.2
5×95	1.6	2.6	51.9	6352.5
5×120	1.6	2.8	56.0	7755.4
5×150	1.8	3.0	61.8	9615.9
5×185	2.0	3.2	68.5	11828.9
5×240	2.2	3.5	77.2	15196.7
