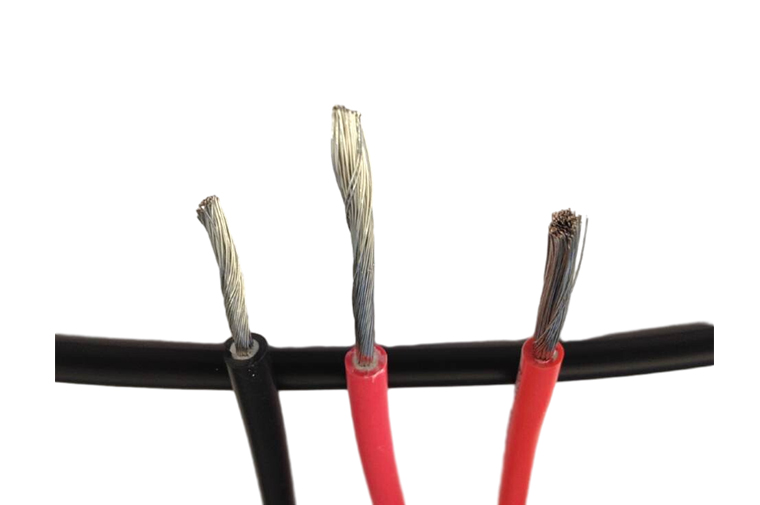

Table 1 PV1-F
| Size
mm2 |
Conductor Dia. mm | Nominal insulation thickness mm | Nominal Jacket thickness mm | Approx. Cable Dia. mm | Approx. Cable Weight kg/km | 20℃ Max. DC resistance Ω/km |
| 1×1.5 | 1.58 | 0.70 | 0.70 | 4.5 | 32 | 13.7 |
| 1×2.5 | 2.02 | 0.70 | 0.70 | 5.0 | 43 | 8.21 |
| 1×4 | 2.58 | 0.70 | 0.80 | 5.7 | 62 | 5.09 |
| 1×6 | 3.17 | 0.75 | 0.80 | 6.4 | 85 | 3.39 |
| 1×10 | 4.1 | 0.75 | 0.80 | 7.4 | 127 | 1.95 |
| 1×16 | 5.5 | 0.80 | 0.80 | 8.9 | 192 | 1.24 |
| 1×25 | 6.7 | 0.80 | 0.90 | 10.3 | 284 | 0.795 |
| 1×35 | 8.2 | 0.80 | 0.90 | 11.8 | 384 | 0.565 |
