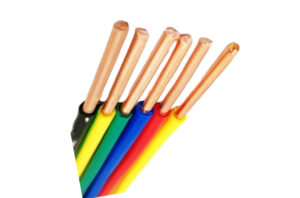

Non-Sheathed Cables For Fixed Wiring SAA
Non-Sheathed Cables For Fixed Wiring SAA
Non-Sheathed Cables For Fixed Wiring SAA
Non-Sheathed Cables For Fixed Wiring SAA
Non-Sheathed Cables For Fixed Wiring SAA
Non-Sheathed Cables For Fixed Wiring SAA

Non-Sheathed Cables For Fixed Wiring SAA

To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.
Certificate :
ISO 9001 ISO 14001 ISO 45001 SAA
Manufacturing Capacity :
100000km/Month
Packaging Details :
Roll, Wood Drum, Steel-Wood Drum or Metal Drum
Send Email
Chat Now
Product Description
Product Application
Product Structure
Main Features
Specification
Related Products
Product Description
To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.
Get a Custom Quote
Product Application
To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.
Product Application
Product Application
Product Application
Product Structure
Non-Sheathed Cables For Fixed Wiring SAA
01
Conductor
- Class 1 solid copper or class 2 stranded (compacted) copper or class 5 stranded copper
02
Insulation
- Polyvinyl chloride compound (V-90)
Standard
AS/NZS 5000.1
Feature
Specification

Table 1 CU/V-90 0.6/1kV



No. of cores Structure of conductor Approx. diameter of conductor Nominal thickness of insulation Approx. overall diameter Approx. weight of cable
& CSA
No./mm mm mm mm kg/km
1.5 7/0.50 1.5 0.8 3.2 22.3
2.5 7/0.68 2.04 0.8 3.7 33.2
4 7/0.85 2.56 1 4.7 52.8
6 7/1.05 3.09 1 5.2 73.1
10 7/1.35 4 1 6.1 111.3
16 7/1.70 5 1 7.1 168.1
25 7/2.14 6.1 1.2 8.6 261.8
35 7/2.54 7.2 1.2 9.7 352.6
50 7/2.96 8.4 1.4 11.3 476.3
70 19/2.14 10 1.4 12.9 672.1
95 19/2.52 12 1.6 15.4 931.3
120 19/2.84 13 1.6 16.4 1155.3
150 37/2.25 14.9 1.8 18.7 1433.7
185 37/2.52 16.5 2 20.7 1783
240 37/2.96 18.4 2.2 23 2327.5
300 61/2.54 21 2.4 26 2923.4
400 61/2.94 23.8 2.6 29.3 3746.3
500 61/3.33 26.6 2.8 32.5 4781
630 61/3.78 30 2.8 35.9 6064.2
800 61/4.30 34 2.8 39.9 7662.7



Table 2 CU(5)/V-90 0.6/1kV



No. of cores Structure of conductor Approx. diameter of conductor Nominal thickness of insulation Approx. overall diameter Approx. weight of cable
& CSA
No./mm mm mm mm kg/km
1.5 48/0.20 1.57 0.8 3.3 23
2.5 77/0.20 2.02 0.8 3.7 33
4 56/0.30 2.59 1 4.7 53
6 84/0.30 3.17 1 5.3 74
10 77/0.40 4.5 1 6.6 115
16 119/0.40 5.5 1 7.6 174
25 189/0.40 7 1.2 9.5 270
35 266/0.40 8.4 1.2 10.9 367
50 380/0.40 10 1.4 12.9 521
70 532/0.40 11.6 1.4 14.5 710
95 722/0.40 13.5 1.6 16.9 961
120 912/0.40 14.9 1.6 18.3 1194
150 1140/0.40 16.5 1.8 20.3 1492
185 1406/0.40 18.4 2 22.6 1841
240 1824/0.40 21 2.2 25.6 2379
300 2318/0.40 23.8 2.4 28.8 2969
400 3080/0.40 30 2.6 35.5 3963
500 3850/0.40 34.9 2.8 40.8 4952
630 5005/0.40 39 2.8 44.9 6162
