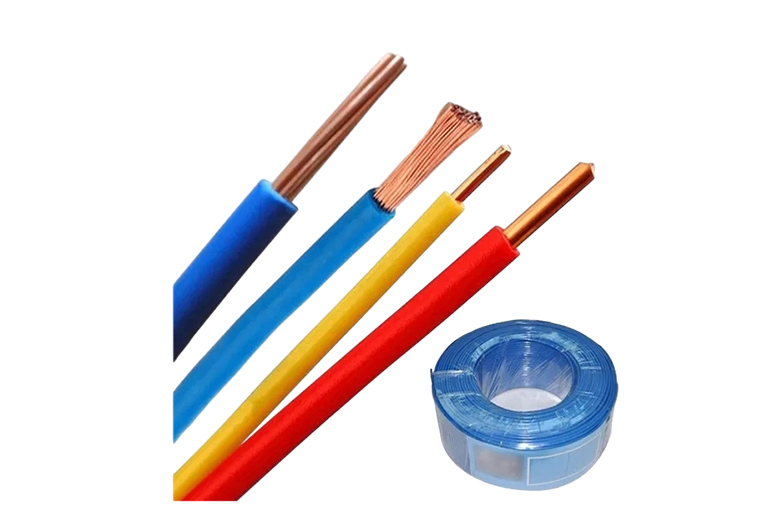

Non-Sheathed Cables For Fixed Wiring IEC

To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.

Certificate :

ISO 9001 ISO 14001 ISO 45001 CCC CE

Manufacturing Capacity :

100000km/Month

Packaging Details :

Roll, Wood Drum, Steel-Wood Drum or Metal Drum

SHARE PRODUCT

Specification

Table 1 60227 IEC 01(BV) 450/750V

No. of cores & CSA	Structure of conductor No./mm	Nominal thickness of insulation mm	Approx. overall diameter mm	Approx. weight of cable kg/km	Max. DC resistance at 20℃ Ω/km
1.5	1/1.38	0.7	2.89	20.4	12.1
1.5	7/0.52	0.7	3.04	21.2	12.1
2.5	1/1.78	0.8	3.49	32.2	7.41
2.5	7/0.68	0.8	3.72	33.5	7.41
4	1/2.25	0.8	3.96	47.3	4.61
4	7/0.85	0.8	4.23	48.8	4.61
6	1/2.76	0.8	4.46	66.9	3.08
6	7/1.05	0.8	4.78	68.7	3.08
10	7/1.35	1.0	6.10	111.7	1.83
16	7/1.70	1.0	7.10	168.6	1.15
25	7/2.14	1.2	8.62	262.6	0.727
35	7/2.54	1.2	9.72	353.5	0.524
50	19/1.78	1.4	11.34	479.5	0.387
70	19/2.16	1.4	12.94	673.5	0.268
95	19/2.52	1.6	15.36	933.2	0.193
120	37/2.01	1.6	16.86	1163.2	0.153
150	37/2.25	1.8	18.68	1436.4	0.124
185	37/2.52	2.0	20.70	1786.3	0.0991
240	61/2.25	2.2	23.62	2342.2	0.0754
300	61/2.54	2.4	26.04	2927.6	0.0601
400	61/2.92	2.6	28.86	3747.3	0.0470

Table 2 60227 IEC 05(BV) 300/500V

No. of cores & CSA	Structure of conductor No./mm	Nominal thickness of insulation mm	Approx. overall diameter mm	Approx. weight of cable kg/km	Max. DC resistance at 20℃ Ω/km
0.5	1/0.80	0.6	2.11	8.6	36.0
0.75	1/0.99	0.6	2.28	11.3	24.5
1	1/1.13	0.6	2.42	13.9	18.1

Table 3 60227 IEC 02(RV) 450/750V

No. of cores & CSA	Structure of conductor No./mm	Nominal thickness of insulation mm	Approx. overall diameter mm	Approx. weight of cable kg/km	Max. DC resistance at 20℃ Ω/km
1.5	45/0.20	0.7	3.08	21.4	13.3
2.5	77/0.20	0.8	3.70	33.4	7.98
4	56/0.290	0.8	4.27	48.9	4.95
6	84/0.290	0.8	4.85	69.0	3.30
10	77/0.40	1.0	6.60	115.9	1.91
16	7*17/0.40	1.0	7.60	174.2	1.21
25	7*27/0.40	1.2	9.52	270.5	0.780
35	7*38/0.40	1.2	10.92	367.6	0.554
50	19*20/0.40	1.4	12.94	522.7	0.386
70	19*28/0.40	1.4	14.54	711.4	0.272
95	19*38/0.40	1.6	16.86	962.9	0.206
120	24*38/0.40	1.6	18.26	1196.0	0.161
150	30*38/0.40	1.8	20.28	1494.8	0.129
185	36*38/0.40	2.0	22.60	1844.4	0.106
240	48*38/0.40	2.2	25.62	2383.4	0.0801

Table 4 60227 IEC 06(RV) 300/500V

No. of cores & CSA	Structure of conductor No./mm	Nominal thickness of insulation mm	Approx. overall diameter mm	Approx. weight of cable kg/km	Max. DC resistance at 20℃ Ω/km
0.5	16/0.20	0.6	2.18	9.0	39.0
0.75	24/0.20	0.6	2.39	11.8	26.0
1	32/0.20	0.6	2.56	14.5	19.5
