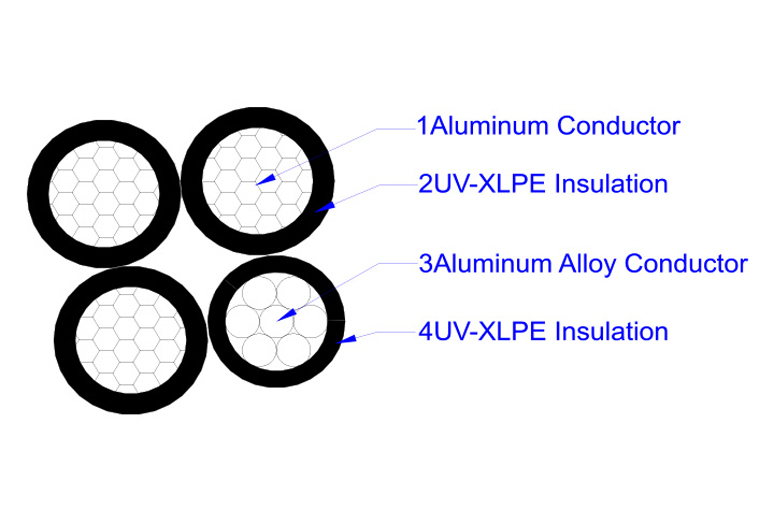

Aerial Bunched Cable

The products applies to the lines of 0.6/1kv, aerial insulated cable for overhead power distribution lines, admissible long-term operating temperature for conductor of cable for XLPE insulation, not exceed 90℃.

Certificate :

ISO 9001 ISO 14001 ISO 45001

Manufacturing Capacity :

5000km/Month

Packaging Details :

Wood Drum, Steel-Wood Drum or Metal Drum

SHARE PRODUCT

Specification

Table1 NF C33-209

Phase Core				Neutral Core				Street Lighting Core				Complete Cable
No. and Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. and Section Area	No. of Wire	Dia. of Conductor (Approx.)	Insulation Thickness	No. and Section area	No. of Wires	Diameter of conductor	Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
mm2	No.	mm	mm	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
2×16	7	4.8	1.2									14.2	126
2×25	7	6.0	1.4									176	194
2×35	7	70	1.6									20.4	266
2×50	7	8.1	1.6									22.6	341
4×16	7	4.8	1.2									17.2	252
4×25	7	6.0	1.4									21.2	388
4×35	7	70	1.6									24.6	533
3×25	7	6.0	1.4	1×54.6	7	9.45	1.6					23.6	496
3×25	7	6.0	1.4	1×54.6	7	9.45	1.6	1×16	7	4.8	1.2	24.9	560
3×25	7	6.0	1.4	1×54.6	7	9.45	1.6	2×16	7	4.8	1.2	26.6	624
3×35	7	70	1.6	1×54.6	7	9.45	1.6					26.1	604
3×35	7	70	1.6	1×54.6	7	9.45	1.6	1×16	7	4.8	1.2	27.2	668
3×35	7	70	1.6	1×54.6	7	9.45	1.6	2×16	7	4.8	1.2	28.7	732
3×50	7	8.1	1.6	1×54.6	7	9.45	1.6					28.1	716
3×50	7	8.1	1.6	1×54.6	7	9.45	1.6	1×16	7	4.8	1.2	28.9	780
3×50	7	8.1	1.6	1×54.6	7	9.45	1.6	2×16	7	4.8	1.2	30.3	844
3×70	12	10.0	1.8	1×54.6	7	9.45	1.6					32.2	940
3×70	12	10.0	1.8	1×54.6	7	9.45	1.6	1×16	7	4.8	1.2	32.7	1004
3×70	12	10.0	1.8	1×54.6	7	9.45	1.6	2×16	7	4.8	1.2	33.8	1068
3×70	12	10.0	1.8	1×54.6	7	9.45	1.6	1×25	7	6.0	1.4	33.6	1038
3×70	12	10.0	1.8	1×54.6	7	9.45	1.6	2×25	7	6.0	1.4	35.5	1137
3×70	12	10.0	1.8	1×70	7	10.20	1.5					32.1	970
3×70	12	10.0	1.8	1×70	7	10.20	1.5	1×16	7	4.8	1.2	32.5	1035
3×70	12	10.0	1.8	1×70	7	10.20	1.5	2×16	7	4.8	1.2	33.6	1099
3×95	19	11.7	1.8	1×70	7	10.20	1.5					35.6	1212
3×95	19	11.7	1.8	1×70	7	10.20	1.5	1×16	7	4.8	1.2	35.7	1276
3×95	19	11.7	1.8	1×70	7	10.20	1.5	2×16	7	4.8	1.2	36.6	1340
3×120	19	13.0	1.8	1×70	7	10.20	1.5					38.0	1439
3×120	19	13.0	1.8	1×70	7	10.20	1.5	1×16	7	4.8	1.2	378	1503
3×120	19	13.0	1.8	1×70	7	10.20	1.5	2×16	7	4.8	1.2	38.6	1567
3×150	19	14.4	1.7	1×70	7	10.20	1.5					40.2	1650
3×150	19	14.4	1.7	1×70	7	10.20	1.5	1×16	7	4.8	1.2	39.8	1714
3×150	19	14.4	1.7	1×70	7	10.20	1.5	2×16	7	4.8	1.2	40.4	1778
3×120	19	13.0	1.8	1×95	19	12.50	1.6					39.5	1526
3×120	19	13.0	1.8	1×95	19	12.50	1.6	1×16	7	4.8	1.2	39.5	1590
3×120	19	13.0	1.8	1×95	19	12.50	1.6	2×16	7	4.8	1.2	39.8	1654
3×150	19	14.4	1.7	1×95	19	12.50	1.6					41.7	1736
3×150	19	14.4	1.7	1×95	19	12.50	1.6	1×16	7	4.8	1.2	41.7	1800
3×150	19	14.4	1.7	1×95	19	12.50	1.6	2×16	7	4.8	1.2	41.6	1865
