AACSR-Aluminum Alloy Conductor Steel Reinforced
AACSR-Aluminum Alloy Conductor Steel Reinforced
AACSR-Aluminum Alloy Conductor Steel Reinforced
AACSR-Aluminum Alloy Conductor Steel Reinforced

AACSR-Aluminum Alloy Conductor Steel Reinforced

AACSR Conductor is applied for large span overhead transmission and distribution lines than ACSR.
Certificate :
ISO 9001 ISO 14001 ISO 45001
Manufacturing Capacity :
10000km/Month
Packaging Details :
Wood Drum, Steel-Wood Drum or Metal Drum
Send Email
Chat Now
Product Description
Product Application
Product Structure
Main Features
Specification
Related Products
Product Description
AACSR Conductor is applied for large span overhead transmission and distribution lines than ACSR.
Get a Custom Quote
Product Application
AACSR Conductor is applied for large span overhead transmission and distribution lines than ACSR.
Product Application
Product Application
Product Application
Product Structure

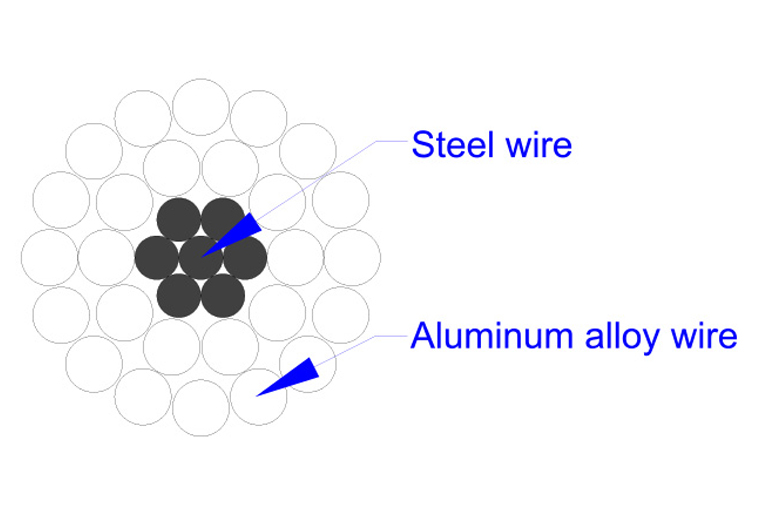

6201 -T81 Aluminum alloy wire and steel core consists of one or more concentrically stranded galvanized steel wires in the centre, and concentrically stranded aluminum alloy wires in external layers, Small weight of aluminum and its best conductivity are combined with high resistance to elongation of steel.
AACSR-Aluminum Alloy Conductor Steel Reinforced
Standard
IEC standard, ASTM standard, EN standard, and other standard and customizable cable.
Feature
High Tensile Strength than ACSR, Excellent resistance to corrosion.
Specification

Table 1 AACSR ( Characteristics of A2/S1A Conductor) IEC 61089



Code Number  Areas Number of Wires Wire Dia. Diameter Liner
Mass		 Rated
Strength		 Max. D.C.
Resistance
at 20 ℃
Alloy St. Total Alloy St. Alloy St. Core Cond.
mm² mm² mm² mm² mm mm mm mm kg/km kn Ω/km
16 18.4 3.07 21.5 6 1 1.98 1.98 1.98 5.93 74.4 9.02 1.7934
25 28.8 4.80 33.6 6 1 2.47 2.47 2.47 7.41 116.2 13.96 1.1478
40 46 7.67 53.7 6 1 3.13 3.13 3.13 9.38 185.9 22.02 0.7174
63 72.5 12.10 84.6 6 1 3.92 3.92 3.92 11.80 292.8 34.68 0.4555
100 115 63.90 121 18 1 2.85 2.85 2.85 14.30 366.4 41.24 0.2880
125 144 7.99 152 18 1 3.19 3.19 3.19 16.00 458.0 51.23 0.2304
125 144 23.40 167 26 7 2.65 2.06 6.19 16.80 579.9 69.86 0.2310
160 184 10.20 194 18 1 3.61 3.61 3.61 18.00 586.2 65.58 0.1800
160 184 30.00 214 26 7 3.00 2.34 7.01 19.00 742.3 88.52 0.1805
200 230 12.80 243 18 1 4.04 4.04 4.04 20.20 732.8 81.97 0.1440
200 230 37.50 268 26 7 3.36 2.61 7.83 21.30 927.9 110.64 0.1444
250 288 28.30 316 22 7 4.08 2.27 6.80 23.10 1013.5 117.09 0.1154
250 288 469.00 335 26 7 3.75 2.92 8.76 23.80 1159.6 138.31 0.1155
315 363 25.10 388 45 7 3.20 2.14 6.41 25.80 1196.5 136.28 0.0917
315 363 59.00 422 26 7 4.21 3.28 9.83 26.70 1461.4 171.90 0.0917
400 460 31.80 402 45 7 3.61 2.41 7.22 28.90 1519.4 172.10 0.0722
400 460 59.70 520 54 7 3.29 3.29 9.88 29.70 1738.3 201.46 0.0723
450 518 35.80 564 45 7 3.83 2.55 7.66 30.60 1709.3 193.61 0.0642
450 518 67.10 585 54 7 3.49 3.49 10.50 31.50 1955.6 226.64 0.0643
500 575 39.80 615 45 7 4.04 2.69 8.07 32.30 1899.3 215.12 0.0578
500 575 74.60 650 54 7 3.68 3.68 11.10 33.20 2172.9 251.82 0.0578
560 645 44.60 689 45 7 4.27 2.85 8.54 34.20 2127.2 240.93 0.0516
560 645 81.60 726 54 19 3.90 2.34 11.70 35.10 2420.9 283.21 0.0516
630 725 313.00 756 72 7 3.58 2.39 7.16 35.80 2248.0 249.62 0.0459
630 725 91.80 817 54 19 4.13 2.48 12.40 37.20 2723.5 318.61 0.0459
710 817 35.30 852 72 7 3.80 2.53 7.60 38.00 2533.4 281.32 0.0407
710 817 10.40 921 54 19 4.39 2.63 13.20 39.50 3069.4 359.06 0.0407
800 921 39.80 961 72 7 4.04 2.69 80.70 40.40 2854.6 316.98 0.0361
800 921 76.70 997 84 7 3.74 3.74 11.20 41.10 3145.1 356.03 0.0362
900 1036 44.80 1081 72 7 4.28 2.85 8.56 42.80 3211.4 356.60 0.0321
900 1036 86.30 1122 84 7 3.96 3.96 11.90 43.60 3538.3 400.53 0.0322
1000 1151 93.70 1245 84 19 4.18 2.61 12.50 45.90 3916.8 446.37 0.0289
1120 1289 105.00 1394 84 19 4.42 2.65 13.30 48.60 4386.8 499.93 0.0258
