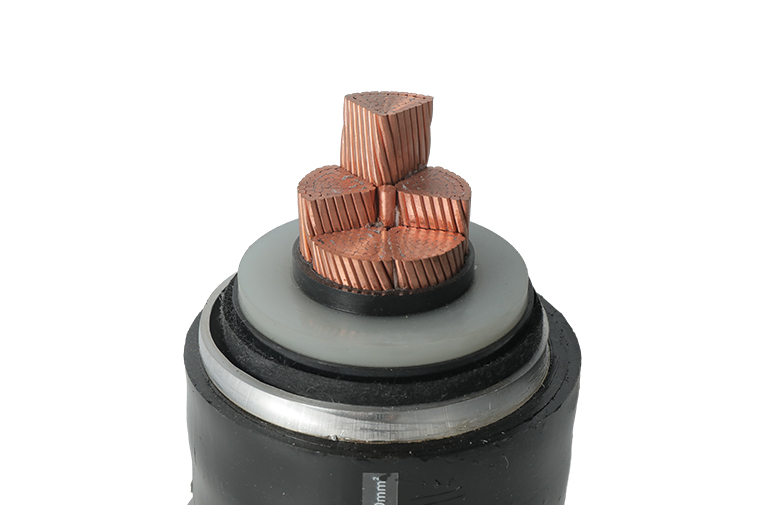

Product Description
Product is suitable for transmission and distribution power lines with current of 50Hz, fixed voltage not exceeding 87/150kV, with general fire protection requirements and external sheath with certain insulation requirements.
Get a Custom Quote
Product Application
Product is suitable for transmission and distribution power lines with current of 50Hz, fixed voltage not exceeding 87/150kV, with general fire protection requirements and external sheath with certain insulation requirements.
Product Application
Product Application
Product Application

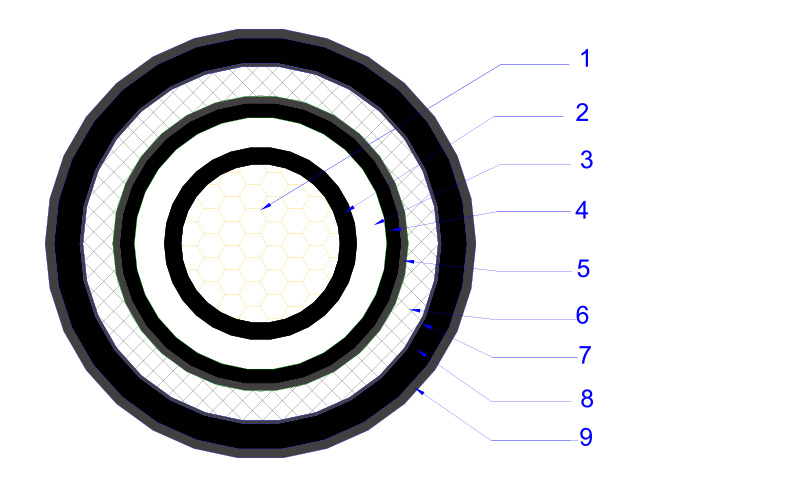

Product Structure

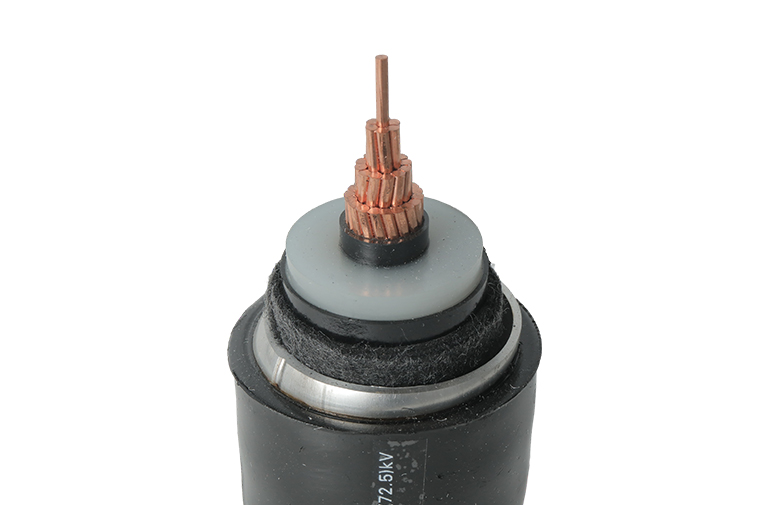

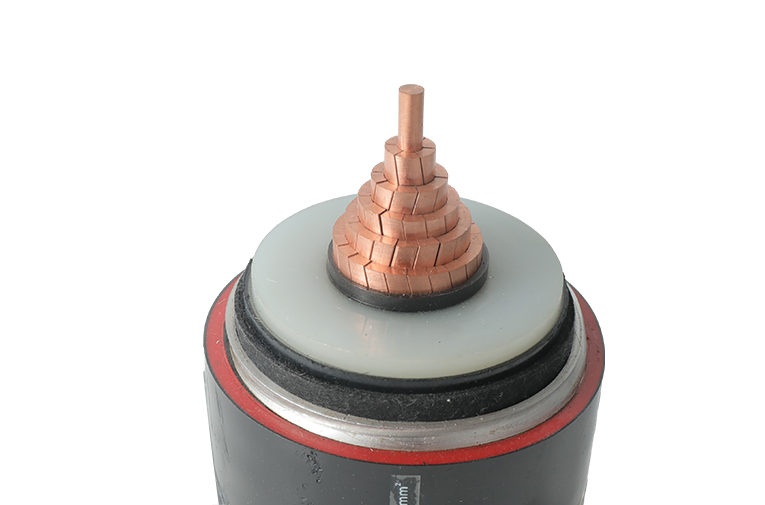

87/150(170)kV High Voltage XLPE Insulation Power Cable
01
Conductor
-Circular stranded compacted conductor (≤800mm2), Milliken conductor (>800mm2)
02
Conductor Screen
-Super smooth Semi-conductive compound
03
Insulation
-Super clean Cross linked polyethylene (XLPE)
04
Insulation Screen
-Super smooth Semi-conductive compound
05
Semi
-Conductive bedding: Semi-conductive tape
06
 Metallic Layer
-Corrugated Aluminum sheath or Lead Sheath or Aluminum Laminated Tape
07
Anticorrosive Coating
-Cable asphalt
08
Outer Sheath
-Polyvinyl chloride compound (PVC) or Polyethylene (PE)
09
Conductive Layer
-Graphite

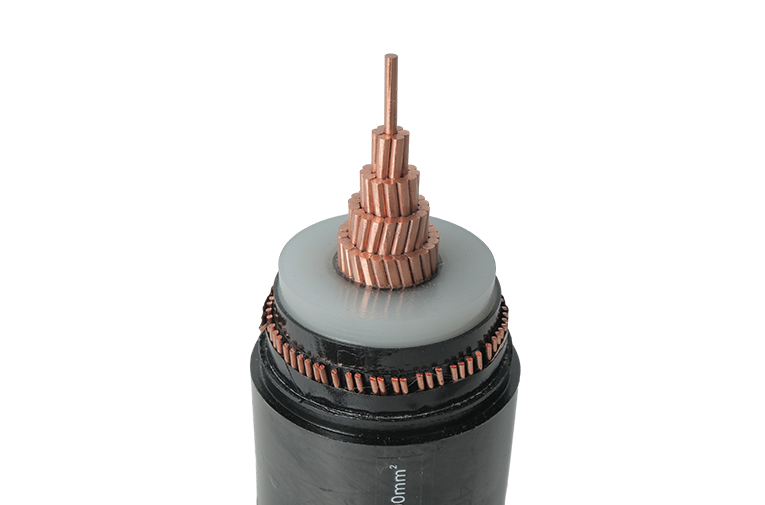

10
Optional
-Copper wire screen, metal wire armored.
Standard
IEC 60840
Voltage Test
AC Voltage Withstand: 2.5U0/30min,No breakdown
Partial discharge test:1.5U0,≯10pc
Temperature Characteristics
Conductor operating temperature: -15℃~90℃
Min. temperature laying condition: 0℃
Conductor short-circuit operating temperature (5s): 250℃
Specification

Table 1 CU/XLPE/CAS/PVC(HDPE)





Nominal CSA mm2 Approx.Conductor diameter mm Nominal Insulation Thickness mm Approx. Cable diameter mm Approx. cable weight kg/km CU
300 20.6 18.5 89.6 8030
400 23.4 18.5 92.5 9050
500 26.6 18.5 96 10400
630 30 18.5 100.3 12100
800 34 18.5 104 14100
1000(SM ) 39.7 18.5 110.4 18200
1200(SM) 42.8 18.5 114.4 20300
1600(SM) 49.2 18.5 121.3 24800
2000(SM) 54.5 18.5 126.6 27300
