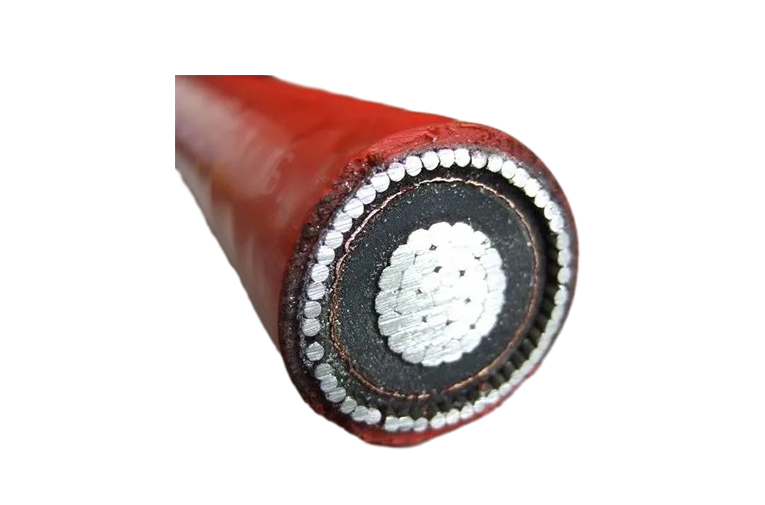

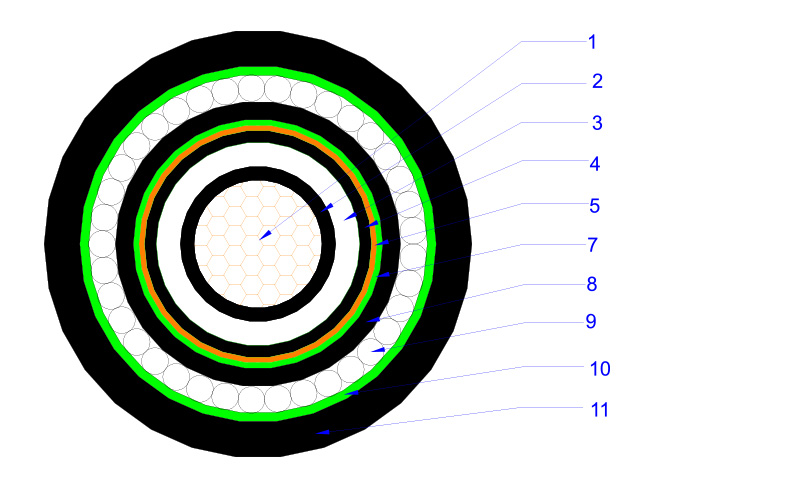

Table1 Single core CU(AL)/XLPE/CTS/PVC/AWA/PVC
| No. & CSA |
Conductor | XLPE insulation | Copper tape screen | Aluminum wire armor | Outer sheath | Weight kg/km | ||
| Approx. diameter mm | Nominal thickness mm | Nominal thickness mm | Nominal diameter of Aluminum wire mm | Nominal thickness mm | Diameter mm | YJV72(CU) | YJLV72(AL) | |
| 1*25 | 6.0 | 5.5 | 0.12 | 1.6 | 1.9 | 30.6 | 1227 | 1075 |
| 1*35 | 7.0 | 5.5 | 0.12 | 1.6 | 2.0 | 31.8 | 1380 | 1168 |
| 1*50 | 8.2 | 5.5 | 0.12 | 2.0 | 2.0 | 33.8 | 1634 | 1347 |
| 1*70 | 10.0 | 5.5 | 0.12 | 2.0 | 2.1 | 35.8 | 1945 | 1523 |
| 1*95 | 11.6 | 5.5 | 0.12 | 2.0 | 2.1 | 37.4 | 2256 | 1676 |
| 1*120 | 13.0 | 5.5 | 0.12 | 2.0 | 2.2 | 39.0 | 2568 | 1837 |
| 1*150 | 14.6 | 5.5 | 0.12 | 2.0 | 2.2 | 40.6 | 2922 | 2010 |
| 1*185 | 16.2 | 5.5 | 0.12 | 2.0 | 2.3 | 42.4 | 3350 | 2213 |
| 1*240 | 18.4 | 5.5 | 0.12 | 2.5 | 2.4 | 46.0 | 4143 | 2668 |
| 1*300 | 20.6 | 5.5 | 0.12 | 2.5 | 2.5 | 48.4 | 4832 | 2989 |
| 1*400 | 23.8 | 5.5 | 0.12 | 2.5 | 2.6 | 52.0 | 5890 | 3478 |
| 1*500 | 26.6 | 5.5 | 0.12 | 2.5 | 2.7 | 55.3 | 7039 | 3977 |
| 1*630 | 30.0 | 5.5 | 0.12 | 2.5 | 2.8 | 59.1 | 8545 | 4627 |
| 1*800 | 34.0 | 5.5 | 0.12 | 2.5 | 3.0 | 63.7 | 10421 | 5435 |
Table2 Three core CU(AL)/XLPE/CTS/PVC/SWA/PVC
| No. & CSA |
Conductor | XLPE insulation | Copper tape screen | Steel wire armor | Outer sheath | Weight kg/km | ||
| Approx. diameter mm | Nominal thickness mm | Nominal thickness mm | Nominal diameter of steel wire mm | Nominal thickness mm | Diameter mm | YJV32(CU) | YJLV32(AL) | |
| 3*25 | 6.0 | 5.5 | 0.1 | 2.50 | 2.8 | 57.2 | 5433 | 4974 |
| 3*35 | 7.0 | 5.5 | 0.1 | 2.50 | 2.9 | 59.6 | 5995 | 5355 |
| 3*50 | 8.2 | 5.5 | 0.1 | 2.50 | 3.0 | 62.6 | 6682 | 5815 |
| 3*70 | 10.0 | 5.5 | 0.1 | 2.50 | 3.1 | 66.8 | 7803 | 6531 |
| 3*95 | 11.6 | 5.5 | 0.1 | 2.50 | 3.3 | 70.7 | 8977 | 7228 |
| 3*120 | 13.0 | 5.5 | 0.1 | 3.15 | 3.4 | 75.4 | 10973 | 8769 |
| 3*150 | 14.6 | 5.5 | 0.1 | 3.15 | 3.5 | 79.1 | 12263 | 9512 |
| 3*185 | 16.2 | 5.5 | 0.1 | 3.15 | 3.6 | 82.9 | 13777 | 10348 |
| 3*240 | 18.4 | 5.5 | 0.1 | 3.15 | 3.8 | 88.3 | 16073 | 11627 |
| 3*300 | 20.6 | 5.5 | 0.1 | 3.15 | 4.0 | 93.6 | 18518 | 12960 |
| 3*400 | 23.8 | 5.5 | 0.1 | 3.15 | 4.2 | 101.1 | 22176 | 14904 |
| 3*500 | 26.6 | 5.5 | 0.1 | 3.15 | 4.4 | 108.3 | 26162 | 16930 |
| 3*630 | 30.0 | 5.5 | 0.1 | 3.15 | 4.7 | 116.7 | 31292 | 19479 |
| 3*800 | 34.0 | 5.5 | 0.1 | 3.15 | 5.0 | 126.1 | 37592 | 22557 |
