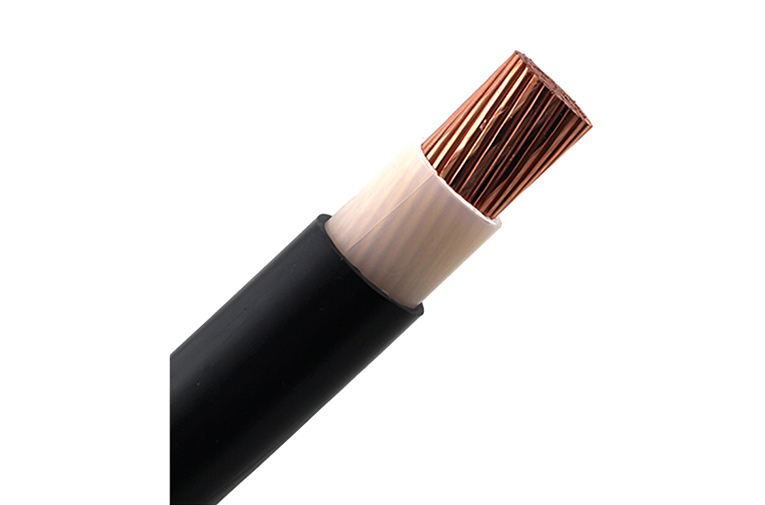

0.6/1kV PVC Insulation Unarmored Power Cable

To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete...

Certificate :

ISO 9001 ISO 14001 ISO 45001 CE

Manufacturing Capacity :

5000km/Month

Packaging Details :

Wood Drum, Steel-Wood Drum or Metal Drum

SHARE PRODUCT

Specification

Table 1 Single core CU/PVC/PVC IEC 60502-1

No. of cores	Approx. diameter of conductor		Nominal thickness of insulation		Nominal thickness of outer sheath	Approx. OD of cable	Approx. weight of cable
& CSA	Approx. diameter of conductor		Nominal thickness of insulation
	Phase	Earth	Phase	Earth
	mm	mm	mm	mm	mm	mm	kg/km
1C1.5	1.56	/	0.8	/	1.4	6	52.1
1C2.5	2.04	/	0.8	/	1.4	6.5	65.9
1C4	2.55	/	1	/	1.4	7.5	91.4
1C6	3.1	/	1	/	1.4	8	115.3
1C10	4	/	1	/	1.4	8.9	159.1
1C16	5	/	1	/	1.4	9.9	222.3
1C25	6.1	/	1.2	/	1.4	11.4	325.7
1C35	7.2	/	1.2	/	1.4	12.5	423.5
1C50	8.4	/	1.4	/	1.4	14.1	557.5
1C70	10	/	1.4	/	1.4	15.7	763
1C95	12	/	1.6	/	1.5	18.4	1046.5
1C120	13	/	1.6	/	1.5	19.4	1277.4
1C150	14.9	/	1.8	/	1.6	21.9	1581.5
1C185	16.5	/	2	/	1.7	24.1	1956.5
1C240	18.4	/	2.2	/	1.8	26.6	2537.3
1C300	21	/	2.4	/	1.9	29.8	3164.4
1C400	23.4	/	2.6	/	2	32.9	4022.4
1C500	26.6	/	2.8	/	2.1	36.7	5111.8
1C630	30	/	2.8	/	2.2	40.3	6445.8
1C800	34	/	2.8	/	2.3	44.5	8137.1

Table 2 Two core CU/PVC/PVC IEC 60502-1

No. of cores	Approx. diameter of conductor		Nominal thickness of insulation		Nominal thickness of outer sheath	Approx. OD of cable	Approx. weight of cable
& CSA	Approx. diameter of conductor		Nominal thickness of insulation
	Phase	Earth	Phase	Earth
	mm	mm	mm	mm	mm	mm	kg/km
2C1.5	1.56	/	0.8	/	1.8	10.7	128.5
2C2.5	2.04	/	0.8	/	1.8	11.6	161
2C4	2.55	/	1	/	1.8	13.5	222.4
2C6	3.1	/	1	/	1.8	14.6	277.2
2C10	4	/	1	/	1.8	16.4	377.5
2C16	5	/	1	/	1.8	18.4	519.5
2C25	6.1	/	1.2	/	1.8	21.4	753.6
2C35	7.2	/	1.2	/	1.8	23.6	971.5
2C50	8.4	/	1.4	/	1.8	26.9	1275.8
2C70	10	/	1.4	/	1.9	30.9	1754.1
2C95	12	/	1.6	/	2	35.9	2393.8
2C120	13	/	1.6	/	2.1	38.1	2907.7
2C150	14.9	/	1.8	/	2.2	43	3600.9
2C185	16.5	/	2	/	2.4	47.4	4455
2C240	18.4	/	2.2	/	2.6	52.4	5747.9
2C300	21	/	2.4	/	2.7	58.7	7156

Table 3 Three core CU/PVC/PVC IEC 60502-1

No. of cores	Approx. diameter of conductor		Nominal thickness of insulation		Nominal thickness of outer sheath	Approx. OD of cable	Approx. weight of cable
& CSA	Approx. diameter of conductor		Nominal thickness of insulation
	Phase	Earth	Phase	Earth
	mm	mm	mm	mm	mm	mm	kg/km
3C1.5	1.56	/	0.8	/	1.8	11.2	154.2
3C2.5	2.04	/	0.8	/	1.8	12.2	197.7
3C4	2.55	/	1	/	1.8	14.2	279
3C6	3.1	/	1	/	1.8	15.4	354.4
3C10	4	/	1	/	1.8	17.4	492.9
3C16	5	/	1	/	1.8	19.5	691.8
3C25	6.1	/	1.2	/	1.8	22.8	1019.1
3C35	7.2	/	1.2	/	1.8	25.2	1327.3
3C50	8.4	/	1.4	/	1.8	28.7	1753.8
3C70	10	/	1.4	/	2	33.2	2442.5
3C95	12	/	1.6	/	2.1	38.6	3341.9
3C120	13	/	1.6	/	2.2	40.9	4081.1
3C150	14.9	/	1.8	/	2.3	46.1	5051.4
3C185	16.5	/	2	/	2.5	50.9	6255.4
3C240	18.4	/	2.2	/	2.7	56.3	8099.7
3C300	21	/	2.4	/	2.9	63.2	10121

Table 4 Four core CU/PVC/PVC IEC 60502-1

No. of cores	Approx. diameter of conductor		Nominal thickness of insulation		Nominal thickness of outer sheath	Approx. OD of cable	Approx. weight of cable
& CSA	Approx. diameter of conductor		Nominal thickness of insulation		Nominal thickness of outer sheath	Approx. OD of cable	Approx. weight of cable
	Phase	Earth	Phase	Earth
	mm	mm	mm	mm	mm	mm	kg/km
4C1.5	1.56	/	0.8	/	1.8	12	184.8
4C2.5	2.04	/	0.8	/	1.8	13.2	240.4
4C4	2.55	/	1	/	1.8	15.5	344.1
4C6	3.1	/	1	/	1.8	16.8	441.7
4C10	4	/	1	/	1.8	19	621.3
4C16	5	/	1	/	1.8	21.4	880.7
4C25	6.1	/	1.2	/	1.8	25.1	1307.7
4C35	7.2	/	1.2	/	1.8	27.7	1711.4
4C50	8.4	/	1.4	/	1.9	31.8	2283.2
4C70	10	/	1.4	/	2.1	36.7	3181.4
4C95	12	/	1.6	/	2.2	42.8	4358.5
4C120	13	/	1.6	/	2.4	45.6	5352.4
4C150	14.9	/	1.8	/	2.5	51.4	6623.4
4C185	16.5	/	2	/	2.7	56.7	8201.1
4C240	18.4	/	2.2	/	2.9	62.7	10626.5
4C300	21	/	2.4	/	3.1	70.4	13276

Table 5 Five core CU/PVC/PVC IEC 60502-1

No. of cores	Approx. diameter of conductor		Nominal thickness of insulation		Nominal thickness of outer sheath	Approx. OD of cable	Approx. weight of cable
& CSA	Approx. diameter of conductor		Nominal thickness of insulation
	Phase	Earth	Phase	Earth
	mm	mm	mm	mm	mm	mm	kg/km
5C1.5	1.56	/	0.8	/	1.8	12.9	217.1
5C2.5	2.04	/	0.8	/	1.8	14.2	285.2
5C4	2.55	/	1	/	1.8	16.8	412.1
5C6	3.1	/	1	/	1.8	18.2	532.5
5C10	4	/	1	/	1.8	20.7	754.5
5C16	5	/	1	/	1.8	23.4	1075.7
5C25	6.1	/	1.2	/	1.8	27.5	1605.1
5C35	7.2	/	1.2	/	1.9	30.6	2120.2
5C50	8.4	/	1.4	/	2.1	35.4	2846.2
5C70	10	/	1.4	/	2.2	40.5	3942.6
5C95	12	/	1.6	/	2.4	47.5	5426.9
5C120	13	/	1.6	/	2.5	50.4	6639.2
5C150	14.9	/	1.8	/	2.7	57	8243.7
5C185	16.5	/	2	/	2.9	62.9	10204.8
5C240	18.4	/	2.2	/	3.1	69.6	13223.2
5C300	21	/	2.4	/	3.3	78.1	16518.2
